All-inclusive: Detector for treasure hunters with highest demands
Detection depth: With this technology customers found objects down to 25 m (82 ft) deep
Use cases: Archaology, treasure hunting, natural gold prospection, cavity detection
Operating modes: 3D Ground Scan, Magnetometer, Pinpointer, Mineral Scan
Detectable objects: Treasure chests, cavities, tunnels
Made in Germany
Taiwan Sole Dealer:
Jin-Bomb Enterprise Co., Ltd.
Tel.: +886-7-332-2207

More-Details:
3D Ground Scanner and Metal Detector for Highest Demands
The eXp 6000 ground scanner and metal detector is one of OKM’s top of the line detecting tools for treasure hunters, metal detectorists, archaeologists, prospectors, gold seekers and ground surveyors. This detector is completely wireless and can be controlled via touchscreen, video eye glasses or notebook. It is the world’s first 3D ground scanner that utilizes the innovative OKM Telescopic Probe which can be extended to 124 cm (4 ft).
Artifacts Detected with OKM eXp 6000 in 30 ft (9 m) Depth
GOLDEN ARTIFACTS DETECTED AT 20 FT (6 M) DEPTH WITH EXP 6000
SILVER COIN HOARD FOUND WITH OKM EXP 6000
13 GOLD COINS FROM VENICE DETECTED IN TÜRKIYE WITH EXP 6000

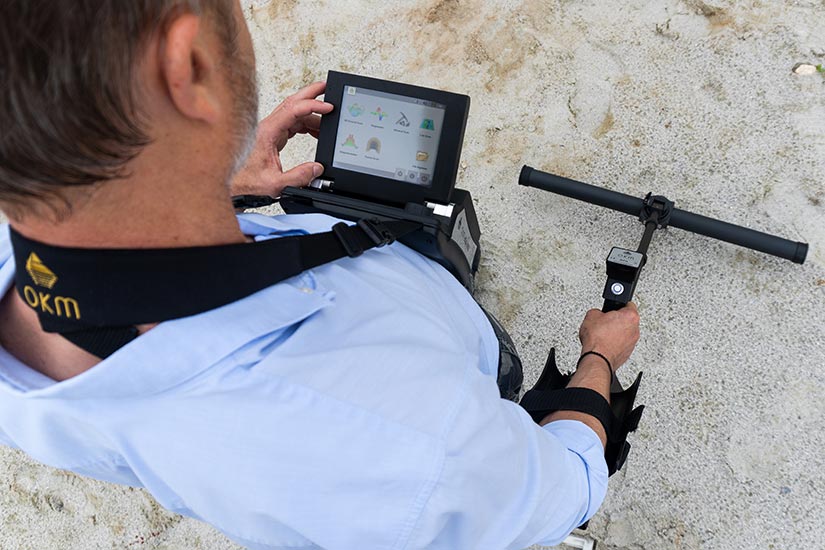

Color Display and Touchscreen
Color Display and Touchscreen: Easy-to-use GUI with automatic brightness adjustment
The Control Unit with touchscreen and multilingual graphical user interface (GUI) is very easy to use. Different layouts and automatic brightness control allow the user to efficiently operate the detector even in varying ambient light conditions.

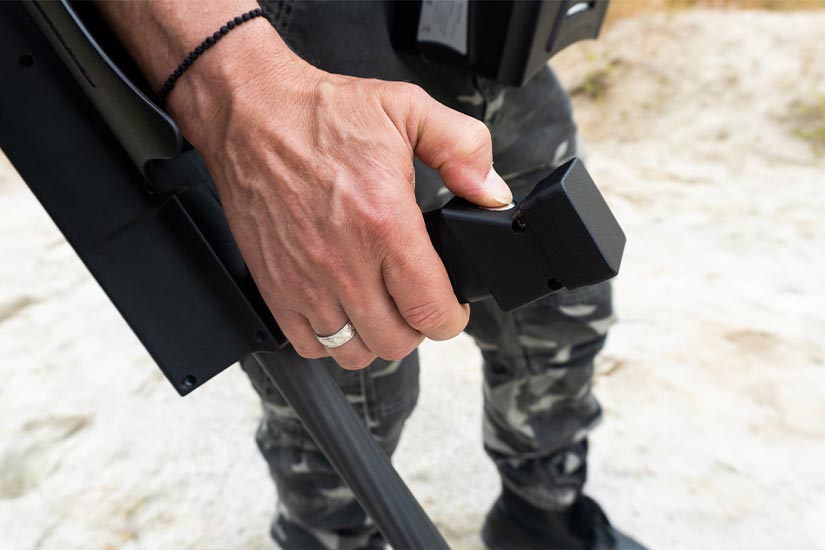

Telescopic Rod with arm rest and handle with trigger for convenient treasure hunting.

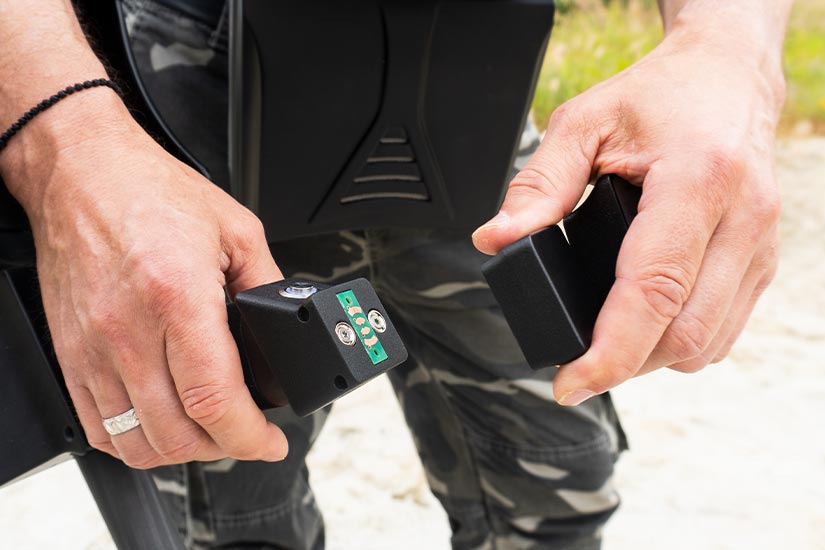

The Protective Cap can be replaced by a GPS Receiver (optional accessory).

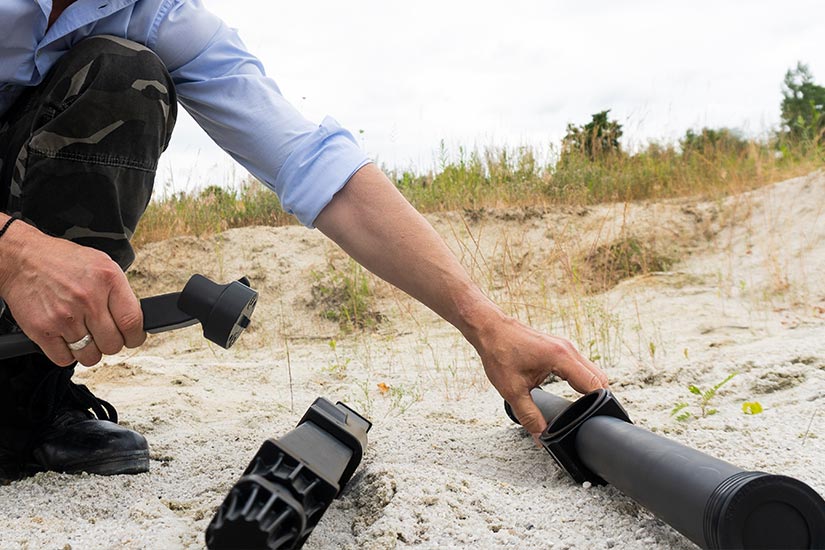

The Telescopic Rod can be adjusted to the user's body size in just a few simple steps. Its armrest is equipped with additonal pads for more ergonomics during the treasure hunt. At the lower end, the probes are quickly and easily mounted via a magnetic connector.
Interchangeable Probes for Various Purposes
Like many high-quality consumer and technical applications, the eXp 6000 probes are made of Carbon. This extremely rigid and light material allows treasure hunters to use the lightweight detector even more easily. Additionally, the probes establish a wireless data connection to the treasure detector to send the scan data directly to the Control Unit.

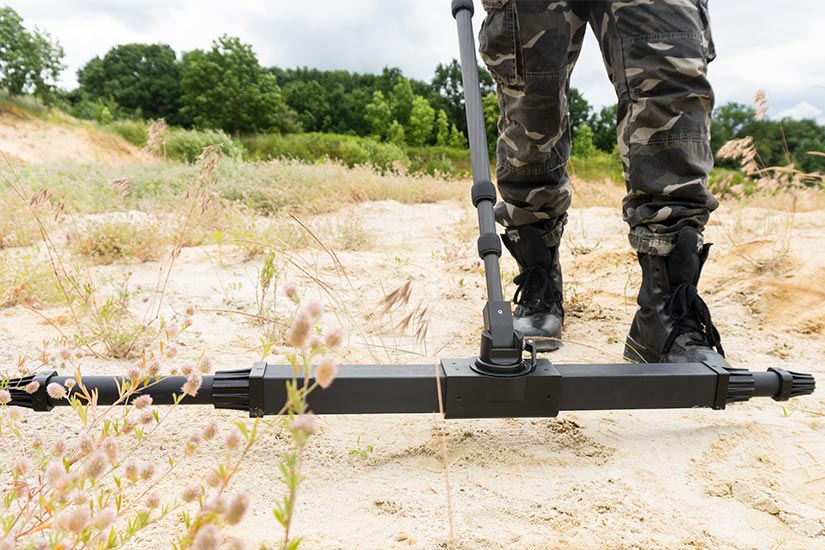

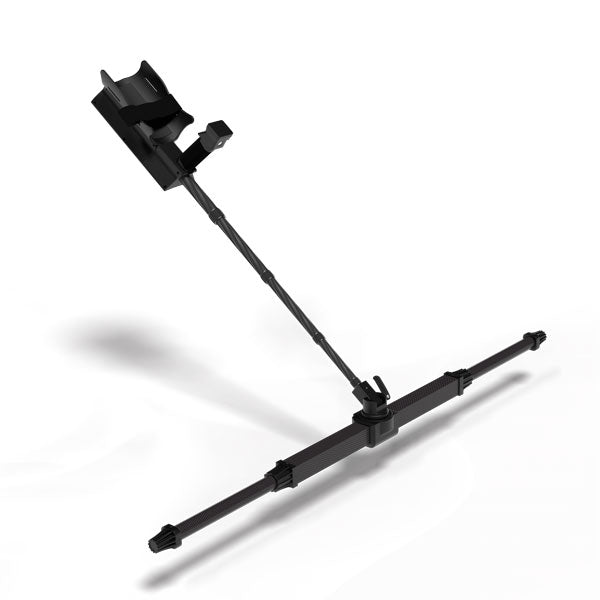

Telescopic Probe
This innovative probe can be extended to 124 cm (4 ft) and is perfectly designed to scan both large areas and narrow areas. As a result, treasure hunters need only one probe and avoid the necessity of carrying additional accessories.

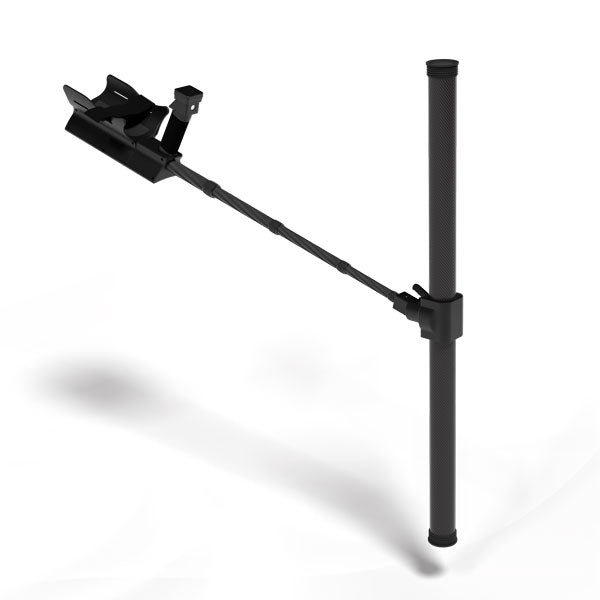

Super Sensor
This specialized ground measuring probe is one of the best ground scanner accessories on the market. By using this antenna, discrimination and pinpointing of buried objects is possible with ease.
eXp 6000 Exclusive: Orientation Sensor
The orientation sensor assists treasure hunters in holding the probe correctly during the measurement. An icon on the screen and an acoustic signal warns as soon as the probe is held in a wrong angle. Only a correct orientation of the probe guarantees reliable measurements.

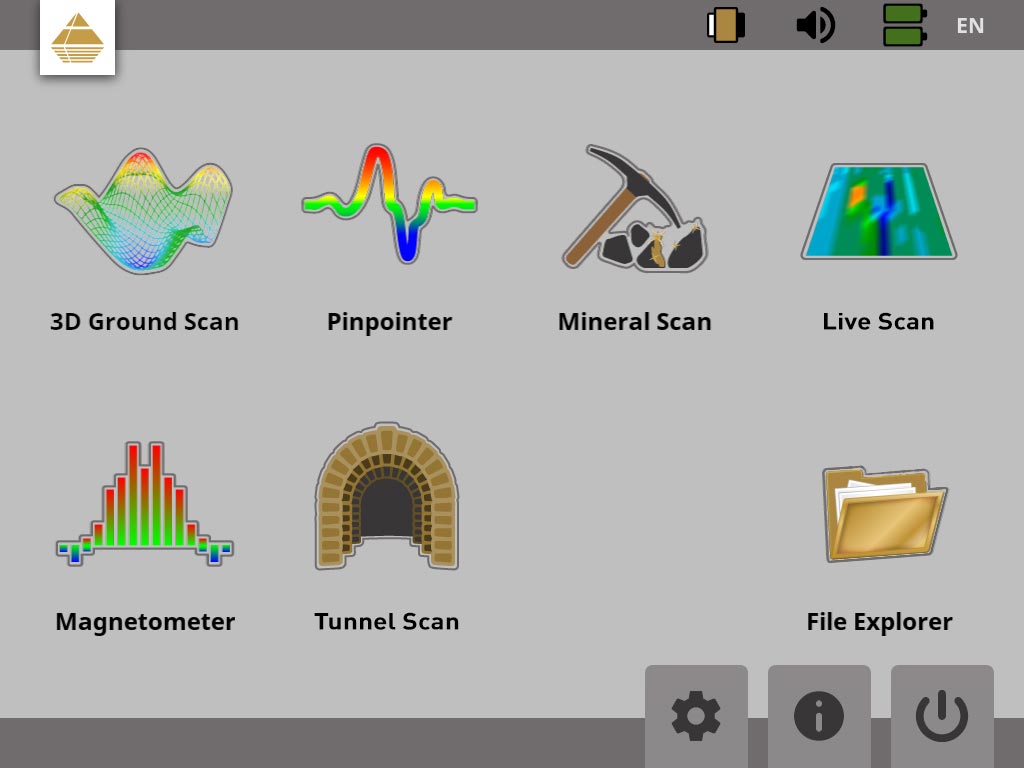

Various Operating Modes for Professional Applications
As top-notch detector, the professional 3D ground scanner eXp 6000 offers various operating modes in one device:
3D Ground Scan
Pinpointer
Mineral Scan
Live Scan* (with Live-Stream Sensor only)
Magnetometer
Tunnel Scan* (with Tunnel Sensor only)
The Tunnel and Live-Stream Sensors are standard equipment of the eXp 6000 Professional Plus.
3D Ground Scan
Visualization of underground artifacts and cavities in 3D representations.
Pinpointer
Identification and localization of detected anomalies.
Mineral Scan
Detection of natural mineralization, visualized in a color-coded graph.
Live Scan*
Visualization of artifacts and cavities in real time.
*eXp 6000 Professional Plus only
Magnetometer
Localization of ferromagnetic objects.
Tunnel Scan*
Detection of tunnels and cavities, visualized in a color-coded graph.
*eXp 6000 Professional Plus only
Save and Analyze Scan Data
The scan data collected in the operating modes Mineral Scan, Tunnel Scan* and 3D Ground Scan can directly be saved in the internal memory of the eXp 6000. After finishing the measurement, the user may open the stored scan files for direct analysis on the eXp 6000 Control Unit or transfer the .v3d files to a computer for detailed analyses.
*eXp 6000 Professional Plus only
3D Analysis via Detection Software

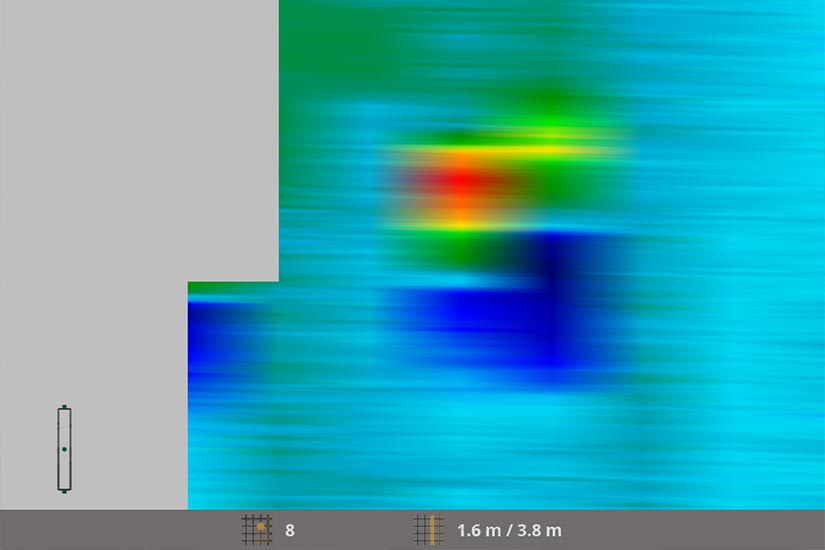

The treasure hunter gets a first glimpse of his scan data directly on the screen of the Control Unit during the measuring process. After finishing and saving the measurement, the user receives a graphical representation of the scan field with color-coded targets. This scan image can be viewed in 2D and 3D as well as rotated and scaled directly on the Control Unit touchscreen.

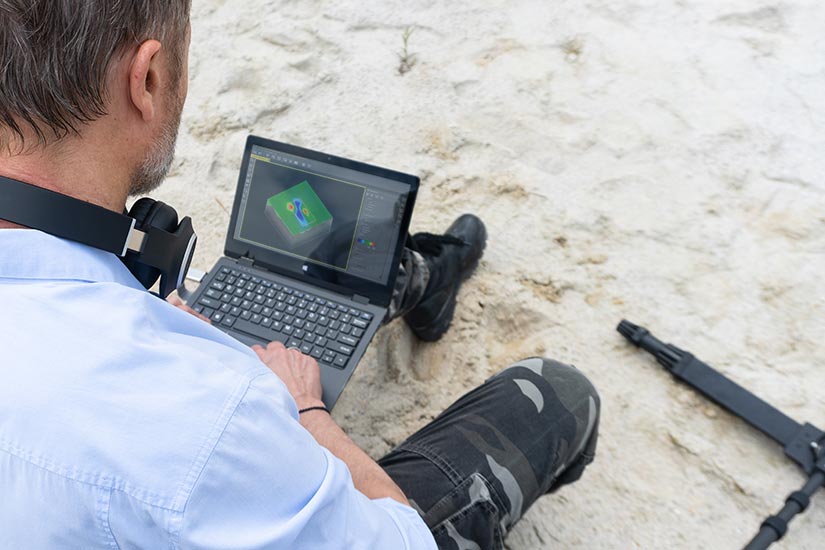

Thanks to the included 3D software Visualizer 3D Studio Standard Edition, the collected measurement data can afterwards be analyzed in detail on a computer. In this way, the depth, position and size of target objects can be determined and the remarkable objects can supplemented with notes.
Discover functions of the Visualizer 3D Studio software

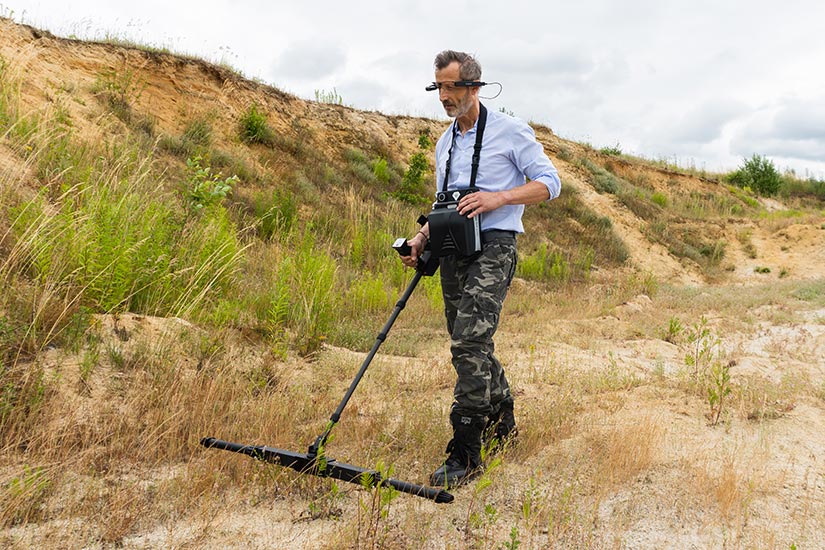

Optional Accessories: Android Tablet, Smart Glasses and Power Pack
Besides the Windows notebook, detectorists can use the Android tablet to view or observe the 3D ground surveys while scanning.
The Power Pack (version D/C) provides additional energy for the detector. With the additional Power Pack the treasure hunter is able to charge the Control Unit and the Telescopic Rod outdoors and even extend the operating time of the detector while scanning the ground.
Control Unit
Dimensions (H x W x D): 120 x 210 x 280 mm
Weight: approx. 2.34 kg
Voltage: 11.8 - 19 VDC, 50 W maximal
Safety Class: IP40
Operating Time (full charged, 25 °C): approx. 4 hours
Operating Temperature: -10 °C – 50 °C
Display: 6.5” Diagonal, 1024 x 768 Pixel TFT Color, 650 cd/qm
Processing Unit: QuadCore AMD @ 2GHz, OpenGL4.2 HD Radeon GPU
Working Memory (RAM): 4 GB Kingston HyperX
Data Memory: 8 GB SDCard, Class 10
Feedback: acoustic, visual
Storage temperature: -20 °C – 60 °C
Air humidity: 5 % – 75 %
Waterproof: No
Data Transmission Technology: WiFi 802.11n a/b/g, MIMO 2x2
Data Transmission Rate: 11 Mbps – 54 Mbps
Operation Distance (line of sight to Telescopic Rod): max. 4 m
Telescopic Rod
Dimensions (H x W x L): 210 x 135 x 680 - 1340 mm
Weight: about 1,76 kg
Voltage: 11.8 - 19 VDC, 22 W maximal
Safety Class: IP40
Operating Time (full charged, 25 °C): approx. 5 hours
Operating Temperature: -10 °C – 50 °C
Processing Unit: ARM Cortex M0+ @ 48 MHz
Working Memory (RAM): 32 KB
Data Memory: 256 KB
Storage temperature: -20 °C – 60 °C
Air humidity: 5 % – 75 %
Waterproof: No
Data Transmission Technology: WiFi 802.11n a/b/g
Data Transmission Rate: 11 Mbps – 54 Mbps
Operation Distance: (line of sight to Control Unit): max. 4 m
Super Sensor
Length: 950 mm
Weight: approx. 0,94 kg
Receiver: Dual / Hi-Gain – Vertical - Geophysical Phase Reader – EMSR
Sensor technology: SCMI-15-D
Telescopic Probe
Length: 820 - 1240 mm
Weight: approx. 1,36 kg
Receiver: Dual Geophysical Phase Reader – EMSR
Sensor technology: SCMI-15-D
The technical data are average values. Minor deviations are possible during operation.
