Bestseller: 3D ground scanner and metal detector
Detection depth: With this technology customers found objects down to 25 m (82 ft) deep
Use cases: Treasure hunting, archaeology, natural gold prospection
Operating modes: 3D Ground Scan, Pinpointer, Magnetometer, Mineral Scan
Detectable objects: Natural gold minerals, treasure chests, jewelry, militaria
Made in Germany
Taiwan Sole Dealer:
Jin-Bomb Enterprise Co., Ltd.
Tel.: +886-7-332-2207

More-Details:
NEW STYLE AND ENHANCED ERGONOMICS
Experience more balanced detector design, improved multilevel lighting and simplified wireless data transfer - for your convenient and efficient treasure hunt.
INTUITIVE AND EASY TO USE
Intuitive control via touchscreen and hardware buttons facilitate the use of the compact detector. Individual settings such as Language and Brightness further improve the easy handling.
COMPACT DETECTOR WITH 4 SCAN MODES
The treasure hunters' favorite OKM detector Rover C4 supports the Operating Modes Magnetometer, 3D Ground Scan, Pinpointer and Mineral Scan. This provides all necessary steps for a comprehensive exploration of the subsurface.
ROVER C4 EXCLUSIVE: LED ORBIT
Both the easy-to-use Standard Probe and the high-resolution Super Sensor are equipped with the innovative LED Orbit. This exclusive feature indicates target objects such as ferromagnetic metal objects as well as voids in real-time by different colors.

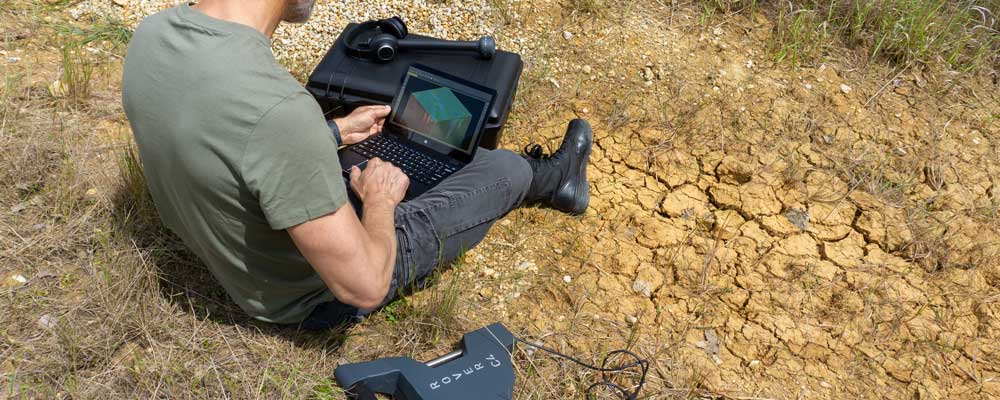

INCLUDING DETECTION SOFTWARE
Visualizer 3D Studio displays your Pinpointer scans in real-time and ground measurements in 3D. This allows you to determine the size, position and depth of target objects more precisely before excavation.

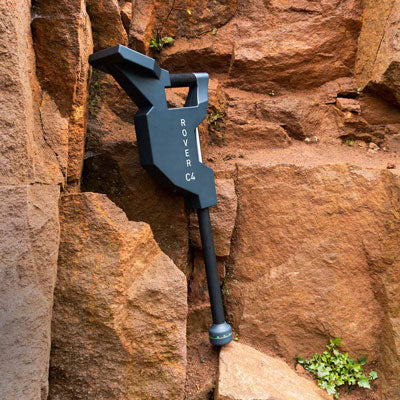

The ground scanner Rover C4 is an easy-to-use multi-purpose treasure and void detector. The detector supports treasure hunters and archaeologists in finding lost treasures such as coins, rings and jewelry as well as underground structures like tunnels, caves, chambers and graves. The measured data can be viewed and analyzed via Visualizer 3D Software.
Benefits and Features of Rover C4
Operational touchscreen with alternative hardware buttons
Graphical user interface in many different languages
Improved multilevel LED lighting for detector usage in darkness
Exchangeable probes: Standard Probe and Super Sensor
Immediate basic target discrimination thanks to LED Orbit
Supported operating modes: 3D Ground Scan, Pinpointer, Mineral Scan, Magnetometer
Integrated battery
Simplified wireless data transfer
4 separate memory areas to store measuring data
Including detection software Visualizer 3D Studio Standard Edition

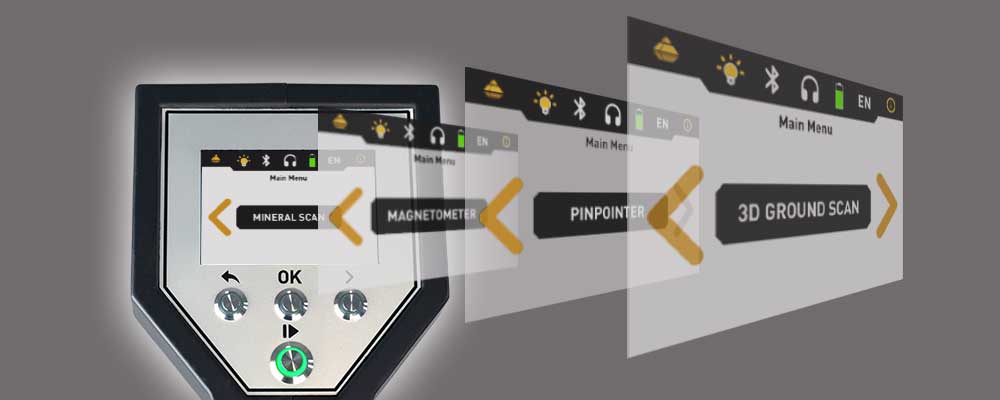

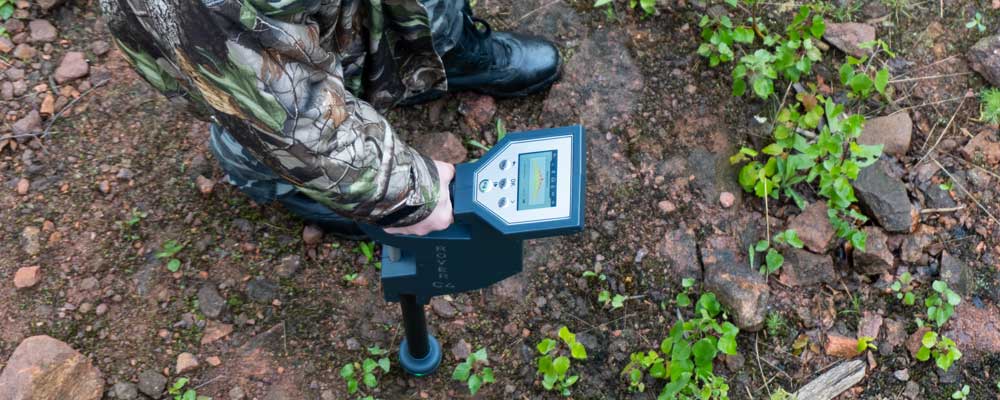

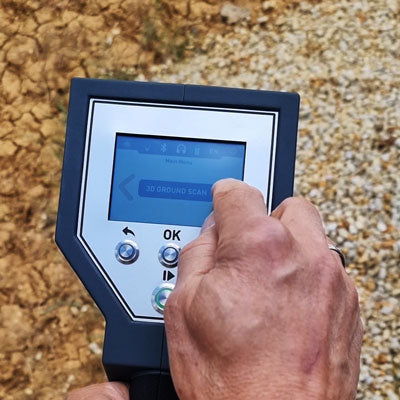

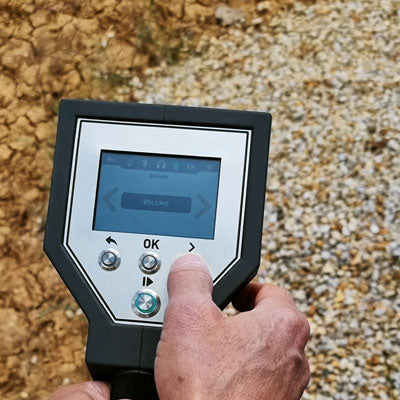

Simple Operation via Touchscreen
The Rover C4 is controlled via color touchscreen with multilingual user interface. This allows a fast and easy operation and configuration of the metal detector. The detector can also be operated by using the alternative buttons.
After selecting your preferred language, it will be indicated in the toolbar icon with the 2-letter-code according to ISO-639-1. The Rover C4 allows detector users to choose from the following languages:
عربي (AR)
Deutsch (DE)
Ελληνικά (EL)
English (EN)
Español (ES)
فارسی (FA)
Français (FR)
Italiano (IT)
Русский (RU)
Türkçe (TR)
中文 (ZH)

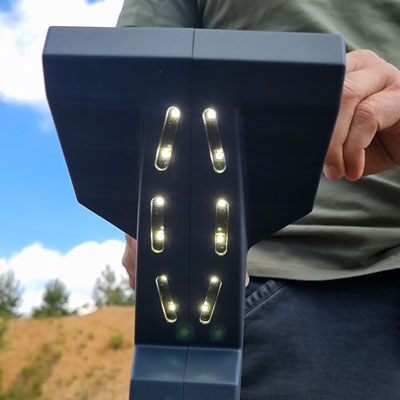

LED Lighting
The embedded LEDs in the bottom side of the Control Unit are gradually adjustable based on your environment. This can be particularly useful when scanning in narrow and dark tunnels or at night.

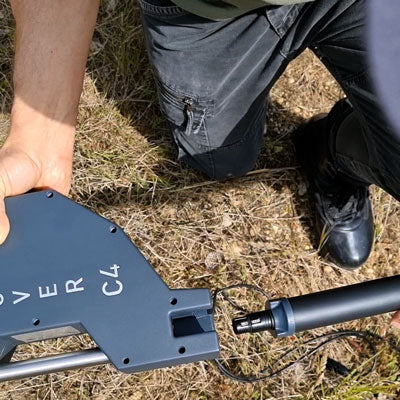

Exchangeable Probes
After connecting the desired probe to the Rover C4 Control Unit, the detector is ready to scan.

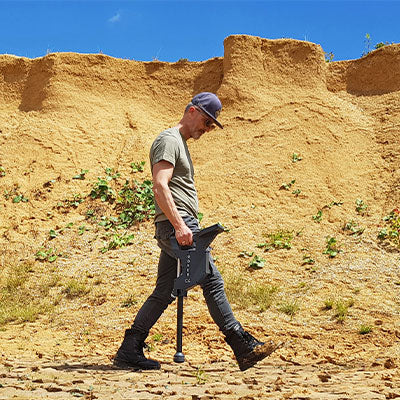

The Standard Probe can be used for the operating modes 3D Ground Scan and Magnetometer. It is attached directly to the unit and thus very easy to carry.

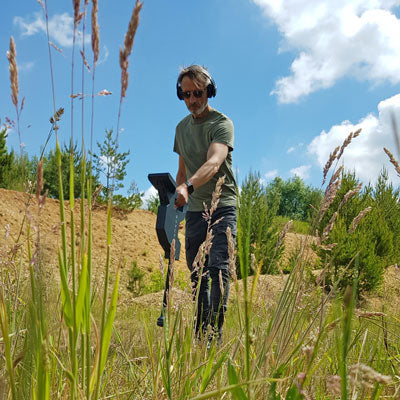

The Super Sensor is used for all operating modes including Mineral Scan and Pinpointer. Moreover, it provides 3D ground scan images in higher resolution. It is connected via cable and carried separately.

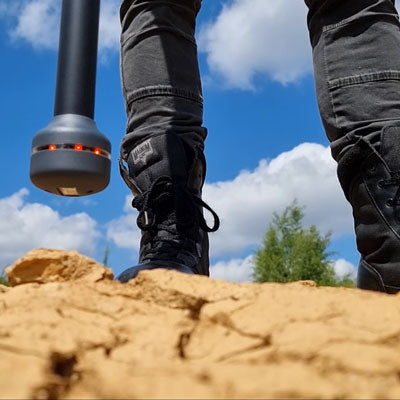

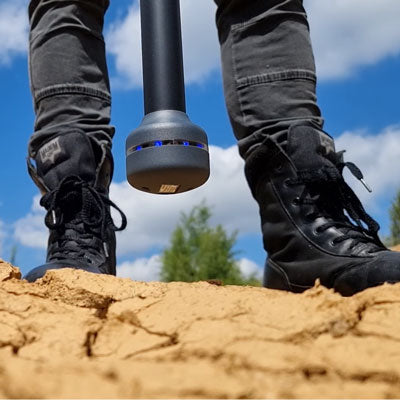

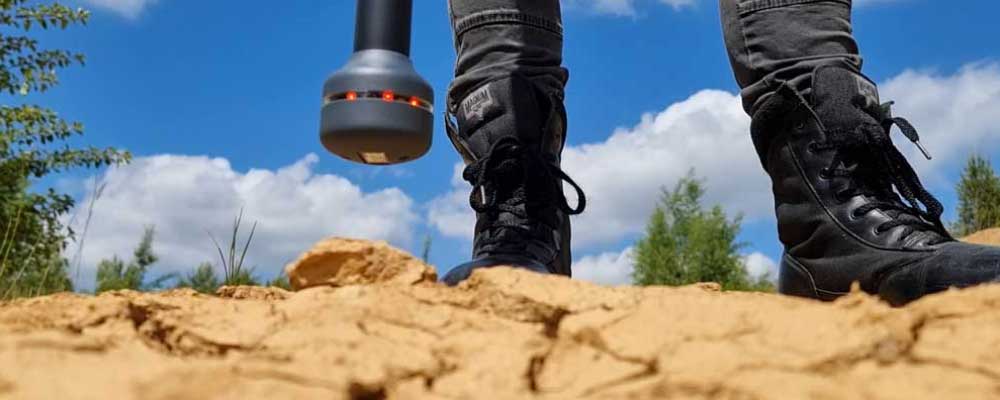

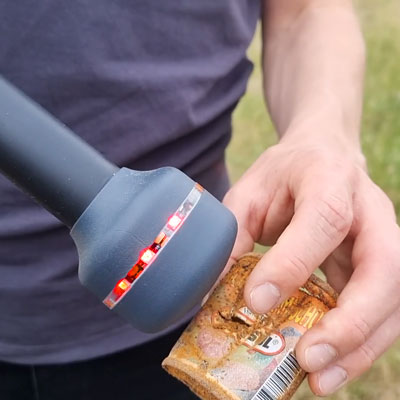

Immediate Feedback via LED Orbit
The Super Sensor and Standard Probe are equipped with an innovative LED Orbit that indicates underground targets immediately during the scan. This basic target discrimination visualizes detected metals and voids in different colors.
Treasure Detector Operating Modes

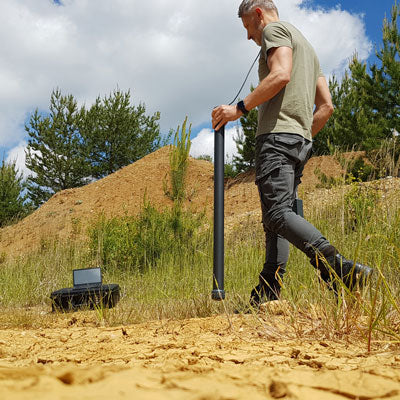

One of the most versatile operating modes in our 3D metal detectors is 3D Ground Scan. This function is used to scan a rectangular area to obtain measuring data from underground structures and objects.
However, in order to perform extensive ground measurements and achieve the maximum detection performance, we recommend using the operating modes Magnetometer, 3D Ground Scan and Pinpointer in succession as follows. The Mineral Scan mode is a Rover C4 add-on for gold prospectors.
Magnetometer
Use Magnetometer to clear the scan field of small metal items like nails, cans, screws and wires near the surface.
3D Ground Scan
3D Ground Scan provides a graphical measurement of any area for further analysis in the detection software Visualizer 3D Studio.
Pinpointer
With Pinpointer detectorists locate buried coins, rings, jewelry and similar treasure objects and artifacts more precisely.
Mineral Scan
Mineral Scan is used to locate natural gold deposits.
The fewer metal items near the surface, the better your 3D Ground Scan results. After clearing your scan field with Magnetometer, you can also find larger metal targets which are located deeper underground. Analyze your 3D Ground Scan images in Visualizer 3D Studio and locate the detected objects more precisely with the Pinpointer mode.

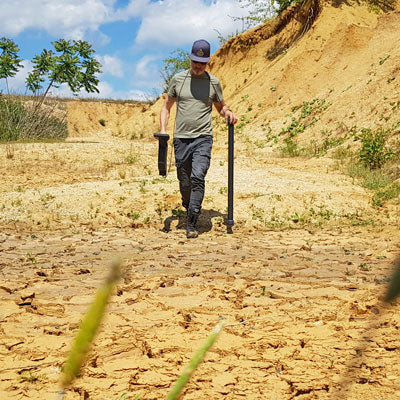

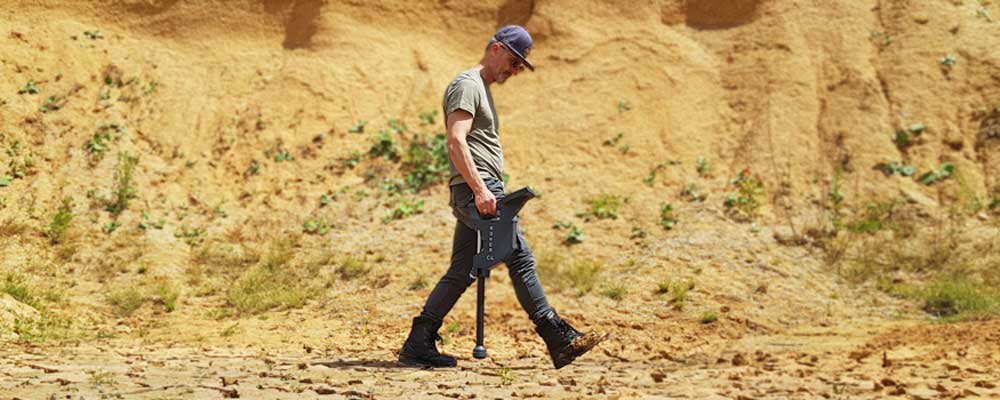

Ground Scanning with Metal Detector Rover C4
Detectable items that can be found with the 3D ground scanner Rover C4 are:
Lost treasures and hidden precious metals
treasure chests, gold coins, jewelry, silverware, statues, general valuables, buttons, medals etc.
Underground voids and cavities
tunnels, graves, chambers, cellars, sepulchers, dugouts, shelters, bunkers etc.
Natural gold minerals
gold ore, gold deposits, gold veins etc.

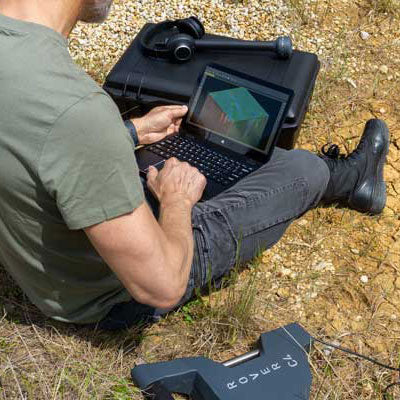

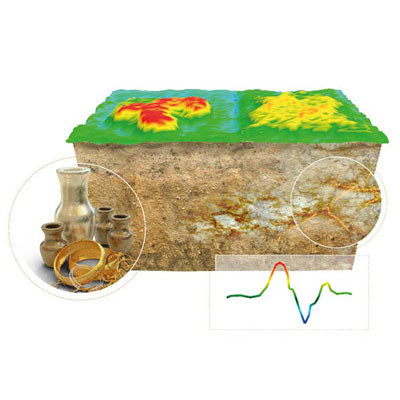

Scan Analysis with Visualizer 3D Software
After transferring your 3D Ground Scans and Mineral Scans to the notebook with Visualizer 3D Software, the scan data are ready for further analyses in order to:
Identify Potential Objects and Hidden Treasures
The detected targets are represented by different colors. The color information will tell you if it is a ferrous metal (iron, steel), precious metal (gold, silver, bronze, copper) or a void structure (cave, tunnel, grave, chamber).
Determine Position and Depth
The software shows the position of the detected anomalies and – according to the chosen soil – how deep the target is buried in the ground.
Calculate Object Dimensions
Besides depth information, Visualizer 3D Studio can also calculate the dimensions of hidden targets and buried items.
Control unit
Dimensions (H x W x D): 390 x 300 x 140 mm
Weight: about 1.5 kg
Input voltage (max.): 19 V DC, 3.16 A, 60 W
Processor / Main CPU: Cortex M3, 32 MHz
Processor / Slave CPU: Cortex M0, 24 MHz
Display: 3.5” Resistive touch, 480 x 320 Pixel
Display CPU: Cortex M3, 32 MHz, 128 KB RAM
Data memory: 4 GB
Sample rate: 1024 values / second
Measurement resolution: 16 bit
Operating temperature: –10°C – 60°C
Storage temperature: –20°C – 70°C
Audio: Internal speaker / Bluetooth
Waterproof: No
Air humidity: 5% – 75%
Standard Probe
Weight: 0.4 kg
Length: 445 mm
Diameter tube / LED Orbit: 35 mm / 65 mm
Technology: SCMI-15-D
Super Sensor
Weight: 0.9 kg
Length: 960 mm
Diameter tube / LED Orbit: 50 mm / 65 mm
Technology: SCMI-15-D
Data transmission
Technology: Bluetooth 5.1
Frequency: 2.402 – 2.480 GHz
Maximum Transfer Rate: 1 Mbps
Maximum Transmitting Power: +8 dBm
Maximum Range: approx. 10 m
Computer minimum requirements
Interface (data transmission): USB 2.0
Free disk space: 250 MB
Working memory (RAM): 2 GB
Display: 1920 x 1080
Processor: 1.2 GHz
Graphics card: 1 GB RAM, OpenGL 3.3
Operating system: Windows 10
The technical data are average values. Minor deviations are possible during operation.
